NTS-SZ (Cable-Release) Series Safety Breakaway Coupling
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.
- Break Force does not change with system pressure or angle of pull!
- Protects your system components by minimizing the amount of stress placed on your system. Pulling force is through cable NOT your hoses/piping.
Specifications
| Connections | FNPT or Flange (150/300#) |
|---|---|
| Sizes | 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
| Max. Pressure | 580 PSI |
| Materials | 316 Stainless Steel |
| Seals | Fluorocarbon, EPDM, Chemraz® |
*Other materials available upon request.

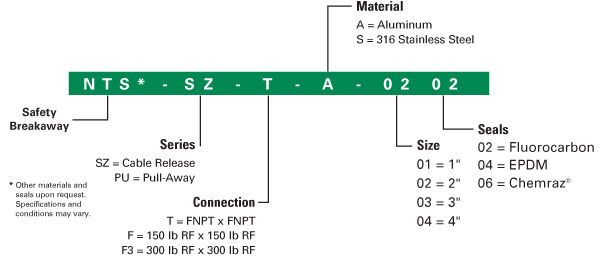

Order Guide
Specifications
| Connections | FNPT or Flange (150/300#) |
|---|---|
| Sizes | 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
| Max. Pressure | 580 PSI |
| Materials | 316 Stainless Steel |
| Seals | Fluorocarbon, EPDM, Chemraz® |
*Other materials available upon request.
-
NTS-SZ IOM
-
Breakaway Application Form
-
NTS-PU-Series-Breakaway Flyer
Videos
OPW Engineered Systems SZ Series Safety Breakaway
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
This video shows how the NTS-PU Safety Breakaway, from Engineered Systems, protects loading equipment and personnel from unintended separation or "drive off" incidents.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.
Break Force does not change with system pressure or angle of pull! Protects your system components by minimizing the amount of stress placed on your system. Pulling force is through cable NOT your hoses/piping.
Order Guide
Specifications
| Connections | FNPT or Flange (150/300#) |
|---|---|
| Sizes | 1", 2", 3", 4", 6" (Sizes up to 12" Available Upon Request) |
| Max. Pressure | 580 PSI |
| Materials | 316 Stainless Steel |
| Seals | Fluorocarbon, EPDM, Chemraz® |
*Other materials available upon request.
-
NTS-SZ IOM
-
Breakaway Application Form
-
NTS-PU-Series-Breakaway Flyer
Videos
OPW Engineered Systems SZ Series Safety Breakaway
Protects your equipment, piping and personnel in the event of an unintended pull-away. A consideration whenever you are making a tight connection to a truck or railcar.
This video shows how the NTS-PU Safety Breakaway, from Engineered Systems, protects loading equipment and personnel from unintended separation or "drive off" incidents.
SAFER. Protects loading rack facilities, hoses and personnel by preventing damage and spills during a pull-away incident.
CLEANER. High value fluid and gas transfer is protected by two spring energized valves for maximum protection with a minimum of fluid loss.
FASTER. Immediate separation occurs at individually determined straight or angular pulling force. This non-destructive separation allows easy reassembly, with no shear pins, tools or spare parts.
Break Force does not change with system pressure or angle of pull! Protects your system components by minimizing the amount of stress placed on your system. Pulling force is through cable NOT your hoses/piping.
