Endura Split Flange - 8000 Series
8000 Series Endura Split Flange Swivels

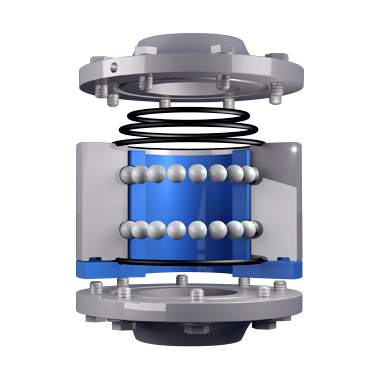

The Endura™ Dual Split Flange (DSF) swivel joint from OPW® Engineered Systems represents the best in swivel technology. Specifically designed for the transfer of hazardous materials such as acids, solvents, petrochemicals and other toxic fluids, Endura™ sets the standard in Loading Arm Swivel performance.
- Standard Sizes: 2 in., 3 in., 4in.
- Standard Materials: Carbon Steel, Stainless Steel
- Standard Seals: Buna-N, Fluorocarbon, PTFE, EPDM, Neoprene
- End Connections: FNPT, 150/300 ANSI Flanges, Butt Weld
Benefits
- Endurance – Heavy-duty construction and unique design features result in long-life, hassle-free operation
- Improves Uptime Performance – Endura™ DSF swivel technology, combined with the most user-friendly counterbalance solutions,results in LESS DOWNTIME–LESS LABOR–LESS COST!
- Lowest Overall Cost of Ownership – Optimized performance, downtime prevention and reduced maintenance time and costs make this the best overall loading arm solution currently available.
- Redundant Sealing for added safety!
- Incorporates a main seal, back-up seal, and environmental seals
- If main product seal ever leaks due to normal wear, the back-up seal contains the fluid
- Any main seal leakage would be channeled to leak detection port
- Environmental seal provides a third layer of protection
- Bearing Module for easy maintenance
- Deep groove replaceable dual & single race ball bearing technology
- Easy replacement or rebuild options
- Ball removal not required to access main seals
- Endura™ 8800-8900 series feature ALL stainless steel construction
- Easy Maintenance
- Simply unbolt sealing flanges to access seals
- No ball bearings to remove
- Leak Detection Port
- In the event of main seal leakage, fluid would be channeled to leak detection port
- Quick & easy way to monitor performance so that maintenance can be performed
- Purge Port
- For critical applications, an inert gas can be injected at leak detection/purge port
- Inert gas pressure higher than product pressure to virtually eliminate risk of fugitive emission.
- Recommended for your extreme applications!
Swivel Styles
Style 20 1 plane of rotation
Style 30 1 plane of rotation
Style 40 1 plane of rotation
Style 50 2 planes of rotation
Style 60 2 planes of rotation
Style 70 2 planes of rotation
Ordering Guide
8000 Series Swivel Order Guide
8000 Series Seal Kits
| Size | Buna | Fluorocarbon | PTFE/Silicone | EPDM | Kalrez® |
| 2” | 8000RK-0201 | 8000RK-0202 | 8000RK-0203 | 8000RK-0204 | 8000RK-0209 |
| 3” | 8000RK-0301 | 8000RK-0302 | 8000RK-0303 | 8000RK-0304 | 8000RK-0309 |
| 4” | 8000RK-0401 | 8000RK-0402 | 8000RK-0403 | 8000RK-0404 | 8000RK-0409 |
All Endura DSF Seal Kits include (2) Main seals, (1) Back-up seal and (3) PTFE encapsulated Fluorocarbon environmental seals. Also included are required seal spacers and hardware.
Technical
Materials
| Materials | Carbon Steel | Stainless Steel |
| Sealing Flange | ASTM A350-LF2 Class 1 | ASTM A351-CF3M |
| Body | ASTM A350-LF2 Class 1* | ASTM A351-CF8M |
| Tail | ASTM A350-LF2 Class 1* | ASTM A351-CF8M |
| Elbow | ASTM A234 WPB | ASTM A351-CF3M 316L |
| 150/300 lb Flange | ASTM A105 | ASTM A351-CF3M 316L |
| Bearing | Grade 200 CST | Grade 440 SST |
| Bolts | A193 B7 | A193 B8M Class 2 |
| Ball Plug/Nut | Carbon Steel | Stainless Steel |
| Grease Fittings | Stainless Steel | Stainless Steel |
*Carburized to RC 45-60 Main and Back-Up Seals
| Min Temp (F/C) | Max Temp (F/C) | |
| Buna | -20°F/-28.8°C | 212°F/100°C |
| Fluorocarbon | -20°F/-28.8°C | 400°F/204.4°C |
| PTFE (PFA) encapsulated Silicone (FDA Approved) | -50°F/-45.6°C | 500°F/260°C |
| EPDM | -50°F/-45.6°C | 250°F/121°C |
| Kalrez | 0°F/17.7°C | 500°F/260°C |
All Endura DSF Swivels come standard with specified main and back-up seals. PTFE encapsulated Fluorocarbon environmental seals (qty 2) and static product seals (qty 1) are standard. Other seals available upon request.
Lubricants
| Product | Description | |
| 880-0089 | High Performance Synthetic Lubricant (14 oz. (400 gram) cartridge) Specially formulated to reduce friction and wear Requires only annual lubrication Will not drip, melt or carburize Complies with FDA Regulation 21CFR 178.3570 Temperature Range: -40°F – 750°F (-40°C – 398.8°C) NOT FOR USE WITH EPT/EPDM SEALS | |
| 885-0083 | High Performance Synthetic Lubricant for EPT/EPDM Seals |
Videos
Literature
-
8000 Series Endura Installation Operations Manual
-
OPW-ES Loading Systems Catalog
-
Swivel Joints Catalog
