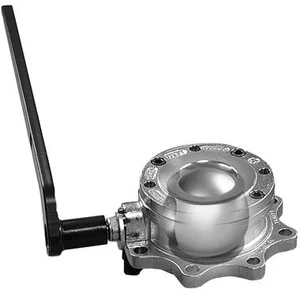

    Bottom_outlet_ball_values

    Bottom Outlet Ball Valves

    Midland bottom outlet ball valves are available for many applications in both low profile and standard profile styles.

    Features

    • 4" Full Port
    • Mates to Universal Saddle
    • Available with and without steam jacket

    Benefits

    • Easy to use — valves open and close fully with only a quarter turn
    • Unrestricted full port opening allows high flow rates for faster unloading
    • Teflon seats provide universal compatibility with most commodities
    • Special seat designs are available for highly viscous products such as molten sulfur

    Models / Drawings

    NameSizeProfileBall DesignBodySteam JacketSealAAR#Drawing
    A-520-C2-CS-SJ4" Full PortLowVentedCarbon SteelYesTeflonE212112A-520-C2-CS-SJ
    A-520-C2-MO-SJ-ST4" Full PortLowVentedStainless SteelYesStainless Filled TeflonE212112A-520-C2-MO-SJ-ST
    A-522-C2-CS4” Full PortStdVentedCarbon SteelNoTeflonE212112A-522-C2-CS
    A-522-C2-CS-SJ4” Full PortStdVentedCarbon SteelYesTeflonE212112A-522-C2-CS-SJ
    A-522-C2-MO4” Full PortStdVented316 Stainless SteelNoTeflonE212112A-522-C2-MO
    A-522-C2-MO-SJ4” Full PortStdVented316 Stainless SteelYesTeflonE212112A-522-C2-MO-SJ
    A-522-C2-CS-ST4” Full PortStdVentedCarbon SteelNoStainless Filled TeflonE212112A-522-C2-CS-ST
    A-522-C2-CS-SJ-ST4” Full PortStdVentedCarbon SteelYesStainless Filled TeflonE212112A-522-C2-CS-SJ-ST
    A-522-C2-CS-SJ-SU4” Full PortStdVentedCarbon SteelYesTeflonE212112A-522-C2-CS-SJ-SU
    A-522-C2-MO-ST4” Full PortStdVentedStainless SteelNoStainless Filled TeflonE212112A-522-C2-MO-ST
    A-522-C2-MO-SJ-ST4” Full PortStdVented316 Stainless SteelYesStainless Filled TeflonE212112A-522-C2-MO-SJ-ST
    A-522-C2-MO-SJ-SU4” Full PortStdVentedStainless SteelYesTeflonE212112A-522-C2-MO-SJ-SU
    A-522-C1-MO-ST4” Full PortStdNon-Vented316 Stainless SteelNoStainless Filled TeflonE212112A-522-C1-MO-ST
    A-522-C1-CS4” Full PortStdNon-VentedCarbon SteelNoTeflonE212112A-522-C1-CS
    A-522-C1-MO4” Full PortStdNon-Vented316 Stainless SteelNoTeflonE212112A-522-C1-MO
    A-522-C1-CS-ST4” Full PortStdNon-VentedCarbon SteelNoStainless Filled TeflonE212112A-522-C1-CS-ST
    A-522A-C2-CS4” Full PortStdVentedCarbon SteelNoTeflonE212112A-522A-C2
    A-522A-C2-MO4” Full PortStdVentedStainless SteelNoTeflonE212112A-522A-C2

    Accessories

    520-152-CSLongitudinal Ball Valve Handle Kit
    520-154-CSTransverse Ball Valve Handle Kit
    K-520-18-CSBall Valve Coupling Kit, Coupling Handle, Lock Washer Assembly, Nylon Insert Locknut, 7/16-20 UNF x 3" Bolt
    Outlet Leg Nozzles
    Outlet Leg Caps
