Natural Gas
Safety Breakaways

HaloValve

When a natural gas line is broken or breached at the meter set assembly, an uncontrolled natural gas leak occurs, often with catastrophic results.

HaloValve is the only technology available for instant and effective protection from this common and dangerous occurrence. Upon a hard impact, the breakaway immediately seals until the line can be repaired.

Perfect for high-traffic or problem installation areas, or anywhere safety is a concern.

Vacuum-Jacketed Piping, Hoses & Accessories

Features & Benefits

Ideal For Any High-Risk Meter Sets

High-Traffic Areas
High-Snow Areas
Installation in addition to bollards or where they aren’t practical

Immediately seals in the event of a hard impact

Corrosion Resistant (316 Stainless Steel/Nitrile Construction)

3/4" Line Sizes (1" Coming Soon!)

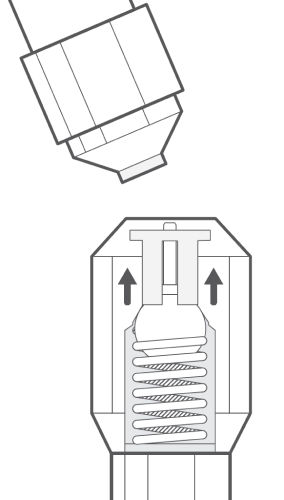

How the Natural Gas Safety Breakaway Works

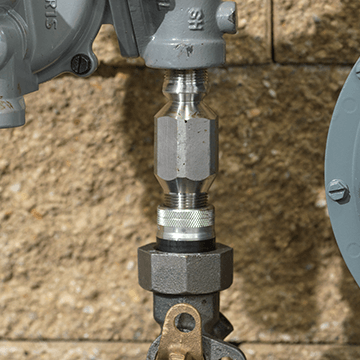

The breakaway is installed into the meter set or other gas piping
Design withstands nominal lateral forces
If a significant lateral force occurs, the fitting breaks
The ball acts as a plug stopping the escape of gas
Stopping the flow of natural gas minimizes risk of fire, explosion, property damage and serious injury

Specifications


Body	Stainless Steel (ASTM 351 CF-8M)
Seal	Nitrile
Pressure Rating	300 psi (21 bar)
Temperature Rating	-40°F – 212°F (-40°C – 100°C)
Connections	FNPT, MNPT
Line Sizes	3/4", 1" *1" size only available in 6" length.
Overall Length	4", 6"

Downloads & Information

HaloValve Data Sheet

Download PDF

Read in browser
HaloValve IOM

Download PDF

Read in browser
HaloValve Pressure Drop

Download PDF

Read in browser
Whitepaper: Neutralizing the Pain Points in Natural Gas Meter Installations

Download PDF

Read in browser
AGA: Leading Practices for Damage Prevention to Meter Sets

Download PDF

Read in browser

About HaloValve

HaloValve was developed by OPW, with support and collaboration from GTI®, an organization dedicated to a secure, abundant and affordable future for all energy markets, with generous funding support from Operations Technology Development (OTD).

About GTI

Since 2003, OTD has aided its clients in developing solutions to the challenges inherent in operating natural gas delivery systems with the goal of optimizing system safety, improving operational efficiencies, reducing operating costs, and maintaining system reliability and integrity.

About OTD
